ARK D4 - WN532A3 AC1200 Dual Band Smart Wi-Fi Router
  • ARK D4 - WN532A3 AC1200 Dual Band Smart Wi-Fi Router 1
  • ARK D4 - WN532A3 AC1200 Dual Band Smart Wi-Fi Router 2
  • ARK D4 - WN532A3 AC1200 Dual Band Smart Wi-Fi Router 3
  • ARK D4 - WN532A3 AC1200 Dual Band Smart Wi-Fi Router 4
  • ARK D4 - WN532A3 AC1200 Dual Band Smart Wi-Fi Router 5

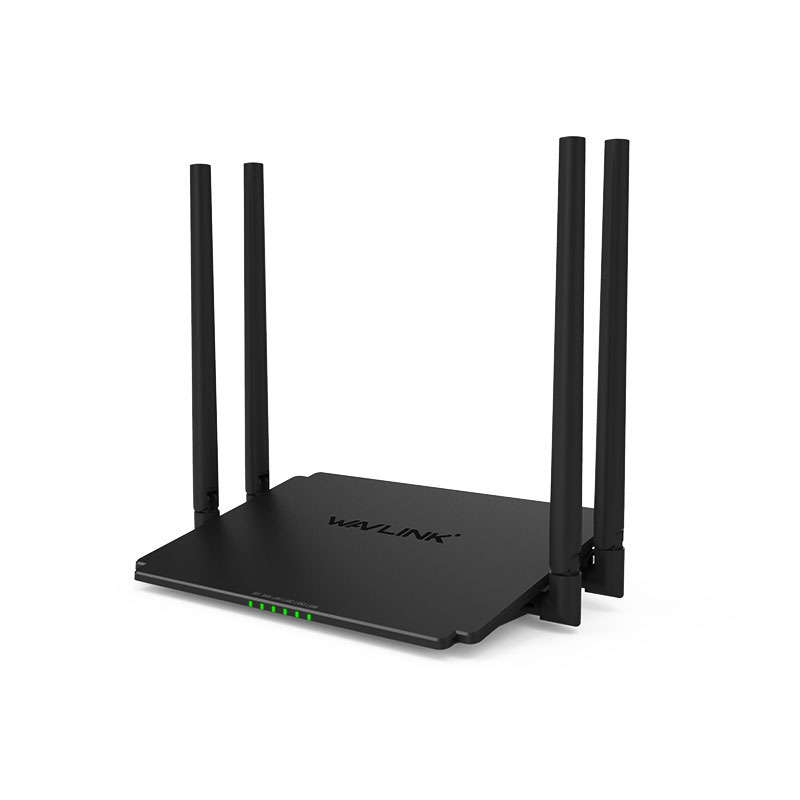

ARK D4 - WN532A3 AC1200 Dual Band Smart Wi-Fi Router

ARK D4

Model: WL-WN532A3

  • Complies with IEEE 802.11a/b/g/n/ac standards

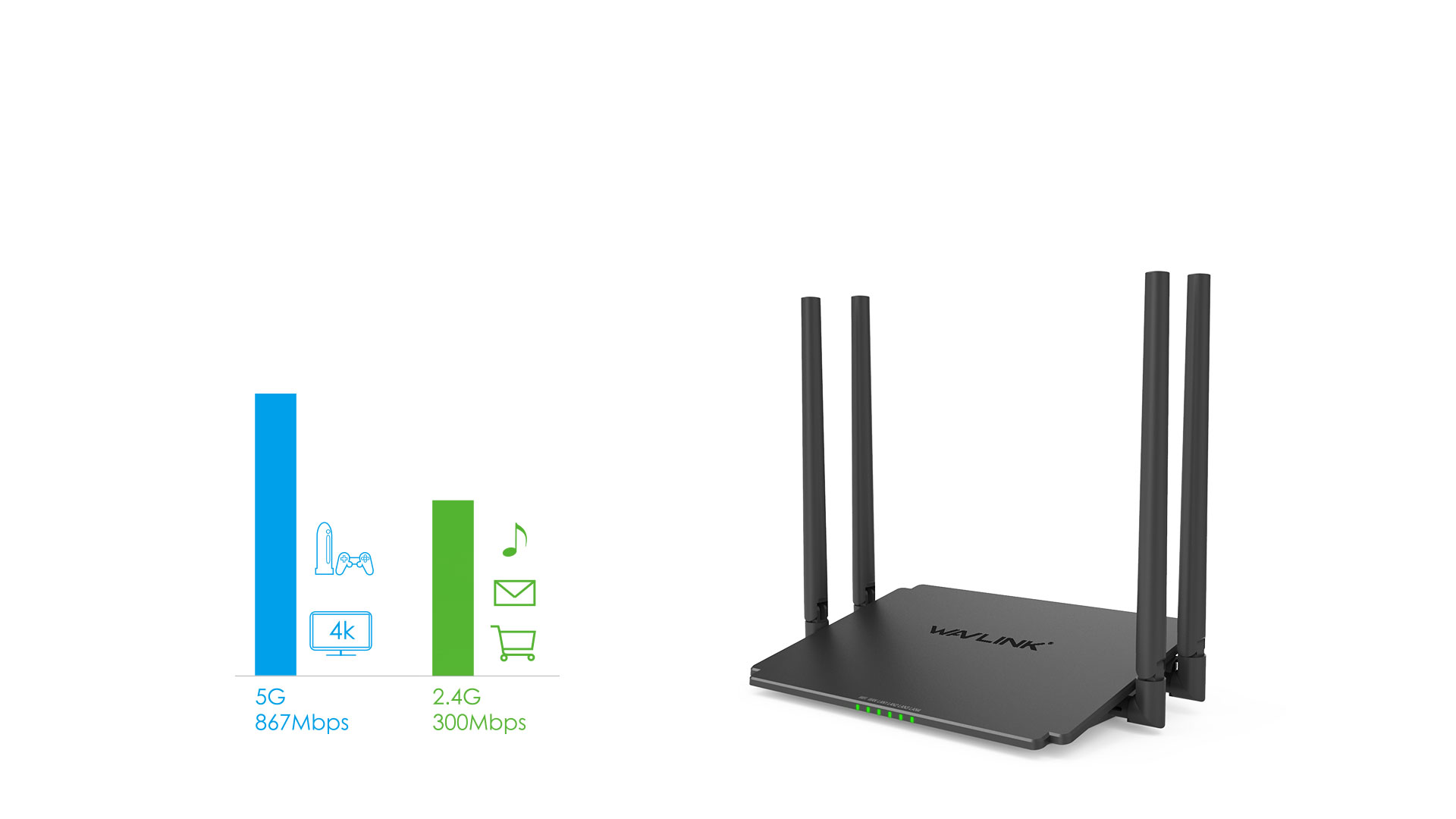

  • Simultaneous 5G 867Mbps and 2.4G 300Mbps connections for 1167Mbps of total available bandwidth
  • Smart Mobile APP remote management anytime and anywhere
  • Smart APP management: Terminal labeling, network disabled, speed monitoring and control
  • Guest Wi-Fi provides secure Wi-Fi access for guests sharing your home or office network
  • Supports by PPPoE, Dynamic IP, static IP and WISP access to the Internet
  • Built-in DHCP server with automatic dynamic IP address distribution
  • Provides 10/100Mbps Auto-Negotiation Ethernet WAN/LAN ports
  • External antennas provide omnidirectional stable signal and superior wireless coverage
  • Easy one-touch wireless security encryption with the WPS button

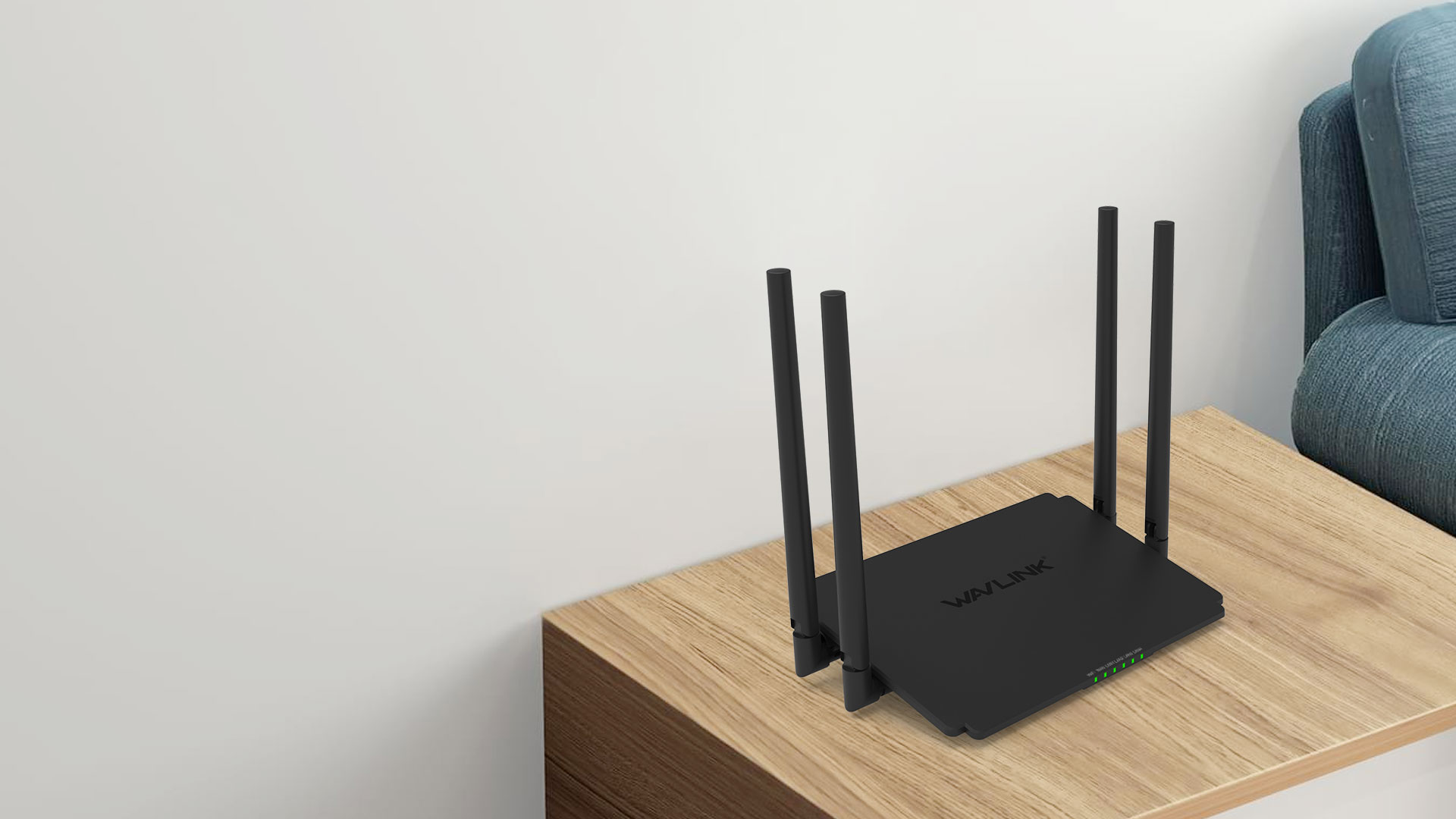

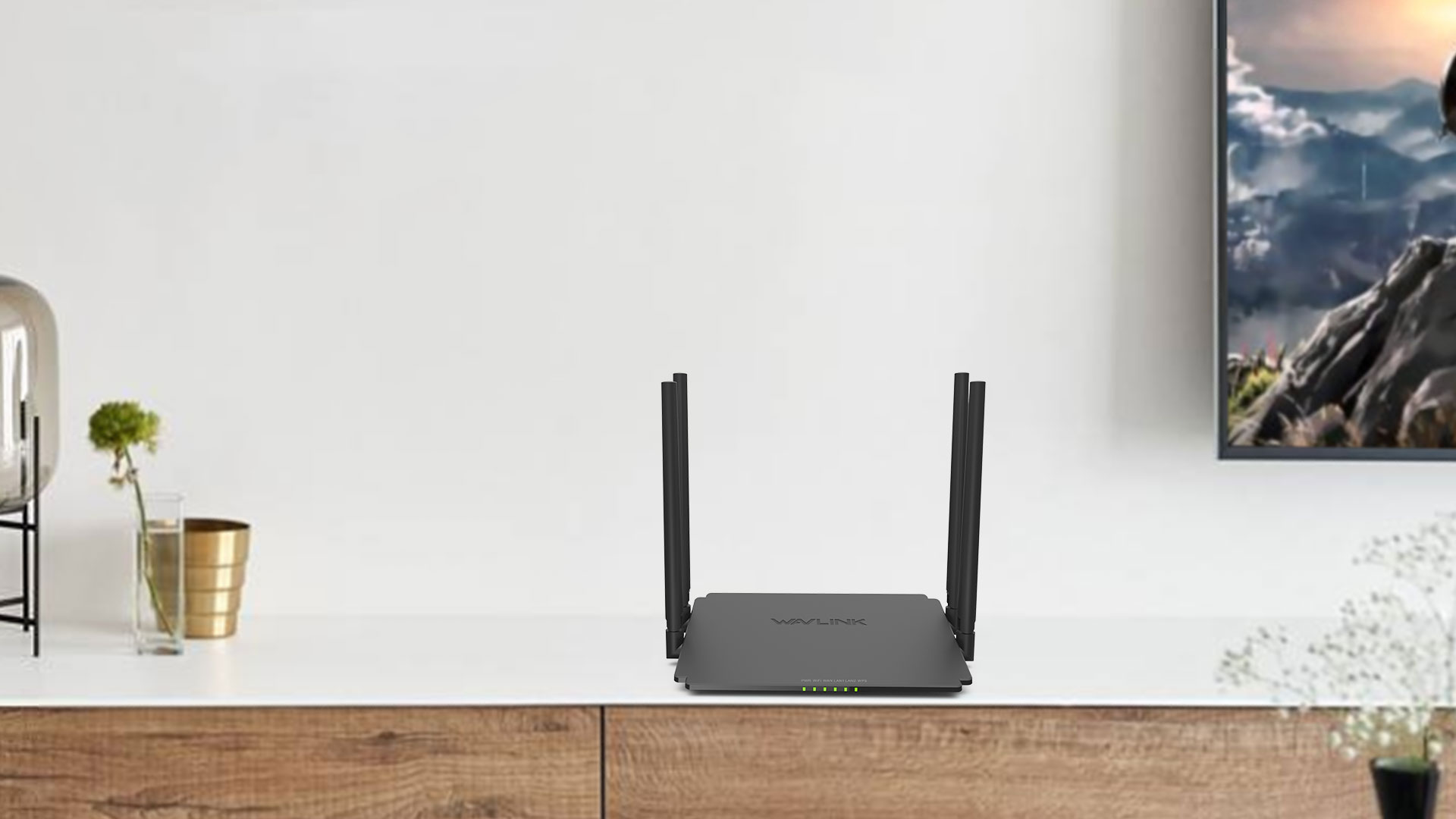

An Industrial Artwork

Grind arenaceous design with ergonomic tilt of 15° makes it a stylish addition to the decor of any room in your home.

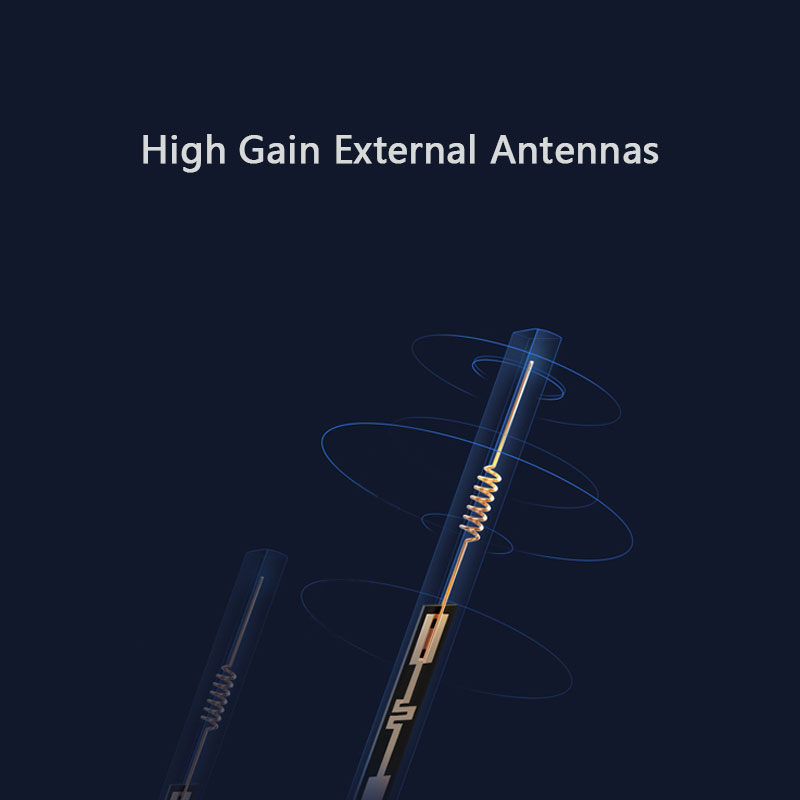

High Gain External Antennas

4 x 5dBi high gain antennas boost the reception and sensitivity of the router to create stronger connections over greater distances, which allows the signal to travel farther and provides stable Internet access for all of your most important connected devices.

Superior Wi-Fi for Superior Range

With four 5dBi high-performance antennas, WAVLINK WN532A3 easily outperforms normal routers, providing dramatically expanded wireless coverage and connections that are significantly more reliable.

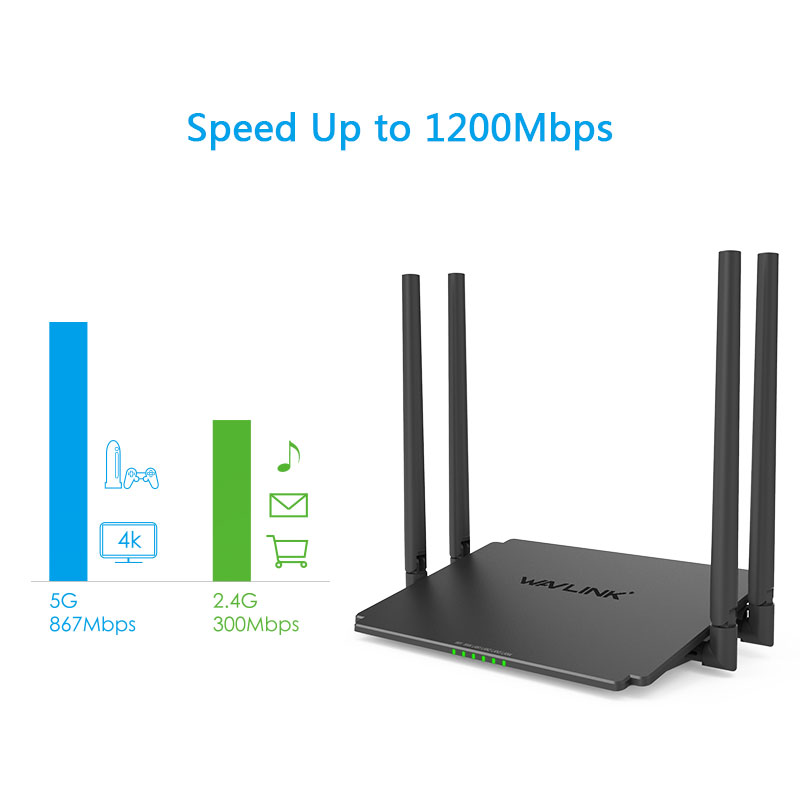

Better Wi-Fi Performance

With wireless speeds of up to 1200Mbps, you can work smoothly with almost any bandwidth intensive application.

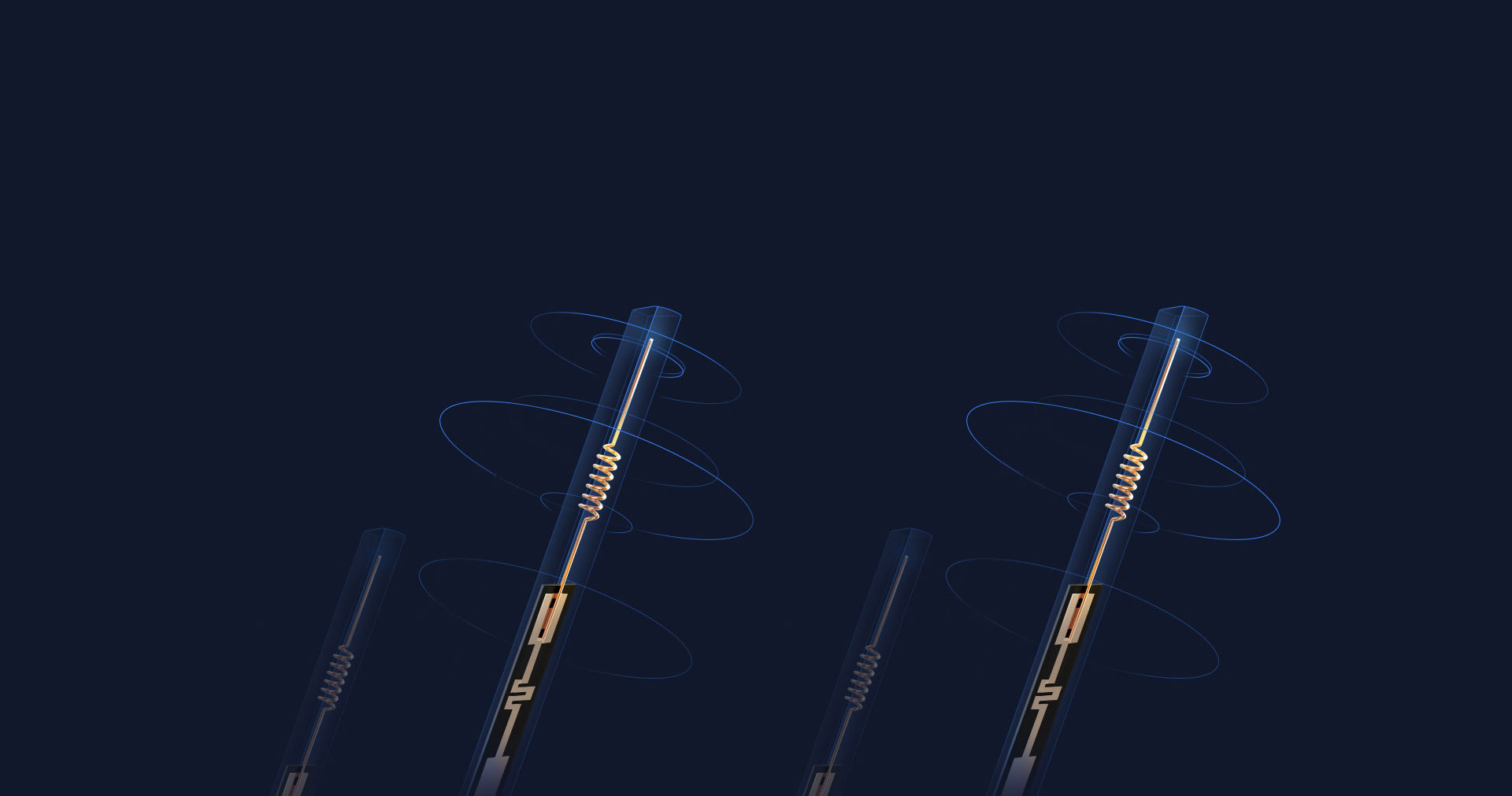

Unique Antenna Design

With unique omnidirectional patent antennas, either place it on your desk or rotate those antennas and hang it on the wall to save room, it will always be fitted in.

Superior chips for stable experience

The powerful CPU easily handle multiple complex tasks and demanding applications with ease, allowing more users connect to the network at the same time.

  • TECHNICAL SPECIFICATIONS
  • Model

    WN532A3

  • Ports

    1 x 10/100Mbps WAN

    2 x 10/100Mbps LAN

    1 x USB 2.0

  • Buttons

    1 x WPS button

    1 x Reset button

    1 x Power button

  • LED

    1 x WPS

    2 x LAN

    1 x WAN

    1 x WiFi

    1 x Power

  • Power Supply

    DC5V / 2A

  • Rated Voltage / Frequency

    Input:100-240 Va.c. 50/60Hz

  • DIMENSIONS
  • Unit Dimensions

    180mm x 125mm x 20mm ( L x W x H )

  • WIRELESS
  • Standard

    IEEE 802.11a/b/g/n/ac

  • Speed

    IEEE 802.11ac: up to 867Mbps

    IEEE 802.11n: up to 300Mbps

    IEEE 802.11g: 54Mbps

    IEEE 802.11b: 11Mbps

    IEEE 802.11a: up to 54Mbps

  • Frequency band

    2.4GHz, 5GHz

  • Wireless Security

    WPA-PSK/ WPA2-PSK encryption

  • Antennas

    4 x 5dBi Omni Directional Antennas

  • PACKAGE
  • In The Box

    1 x Wireless Router

    1 x RJ45 Networking Cable

    1 x DC5V Power Adapter

    1 x Quick Guide
