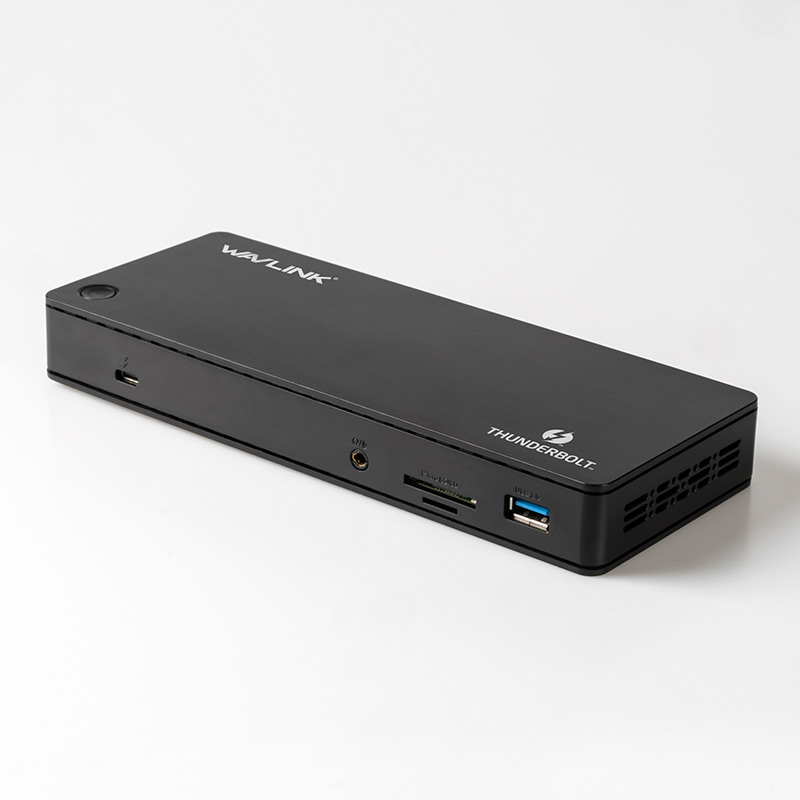

Thunderdock SP/Thunderdock SP IV - Thunderbolt™ 3 4K Display Docking Station

Model: WL-UTD01/WL-UTD01H  Magazine Review

  • 85W Power Delivery to charge your Thunderbolt™ 3 PC systems.
  • DisplayPort 1.2 supports for HBR (2.7GHz), HBR2 (5.4GHz) and HBR3 (8.1GHz).
  • DisplayPort maximum resolutions up to 4K@60Hz.
  • Downstream USB 3.0 Type-A port in front supports 5Gbps data transfer.
  • Downstream three USB-A 3.0 ports provide USB 3.0 5Gbps data transfer rates.
  • Expand a Gigabit Ethernet network, providing secure, reliable high-speed wired networks.
  • Expand a combo audio 4-pole jack, providing audio headset and microphone.
  • Security lock to protect docking safety.
  • Windows and Mac OS compatible.
Thunderbolt™ 3 4K Display Docking Station

The new notion of connectivity

Customized for You

UTD01 offers you a wide range of ports with 13 of them including two Thunderbolt™ 3 ports, three USB3.1 Gen. 1 ports, one DisplayPort, two SD card slots and an audio jack, whether for entertainment, working or studying, it saves your time and improves efficiency.

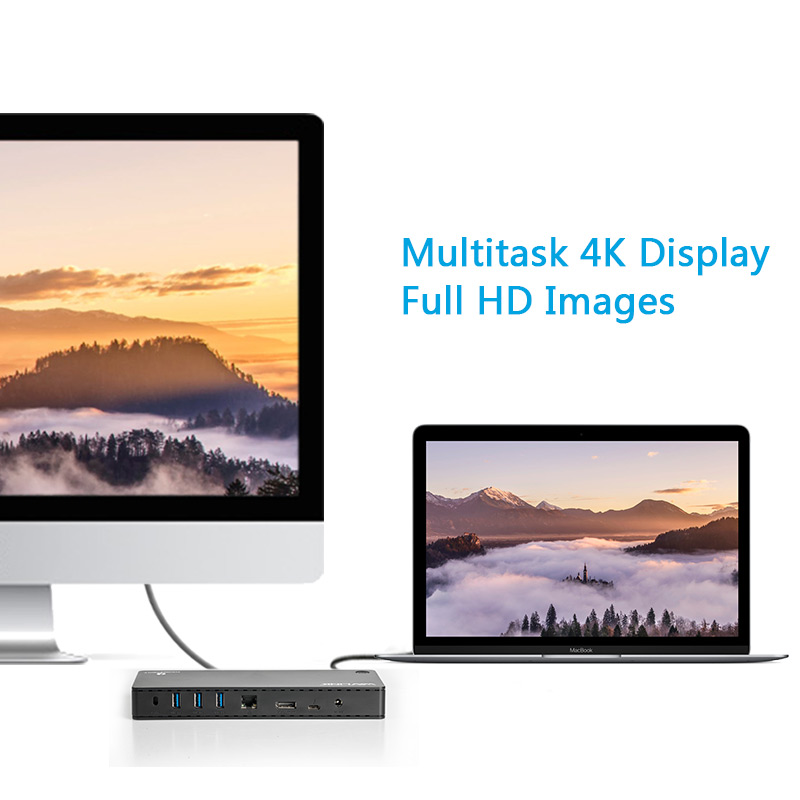

Supporting Dual-Port Video Output

You can connect one or two 4K HD monitors to DisplayPort and Thunderbolt 3 ports with resolutions up to 4K@60Hz.

One Station in Hand Worth all Demands

13 ports on one dock offers a wide range of use for either working or gaming, in addition, issues such as repeated damage caused to dock is now improved to ensure a longer lifespan.

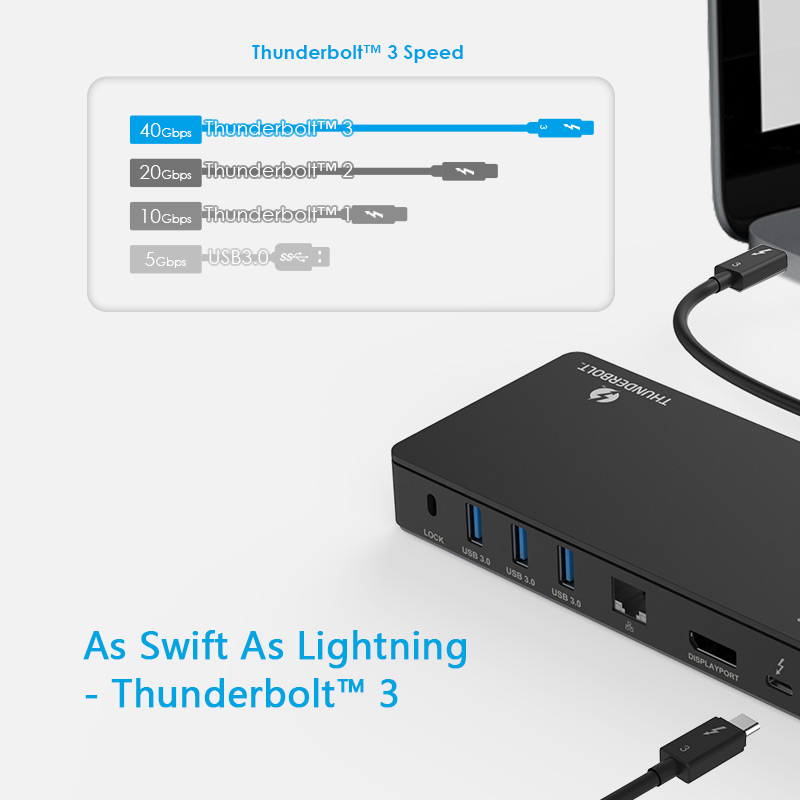

As Swift As Lightning - Thunderbolt™ 3

Thunderbolt™ 3 technology improves the data transmission speed tremendously with the maximum speeds up to 40Gbps, approximately 8X faster than USB 3.0, it changes the way users interact with devices reliant on video and data transfer; moreover, UTD01 supports USB power delivery up to 85W.

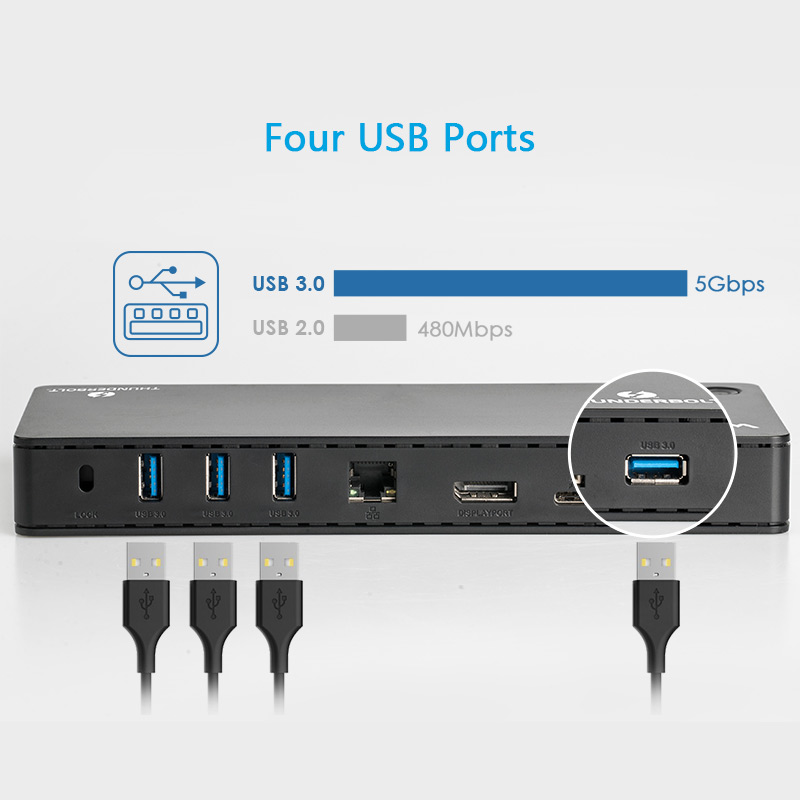

Four USB Ports

In contrast with traditional USB ports, USB 3.0 port is bi-directional that reads and writes data simultaneously with maximum speed of 5Gbps., thus it is time-saving and efficient for data transmission.

Gigabit Ethernet

Connect to your laptop with RJ45 Gigabit Ethernet, your multitasking online will be amazingly sped up compared to regular Ethernet port. Theoretically speaking, it supports up to 1 gigabit/second (1000Mbps), thus bandwidth capacity would be largely enhanced.

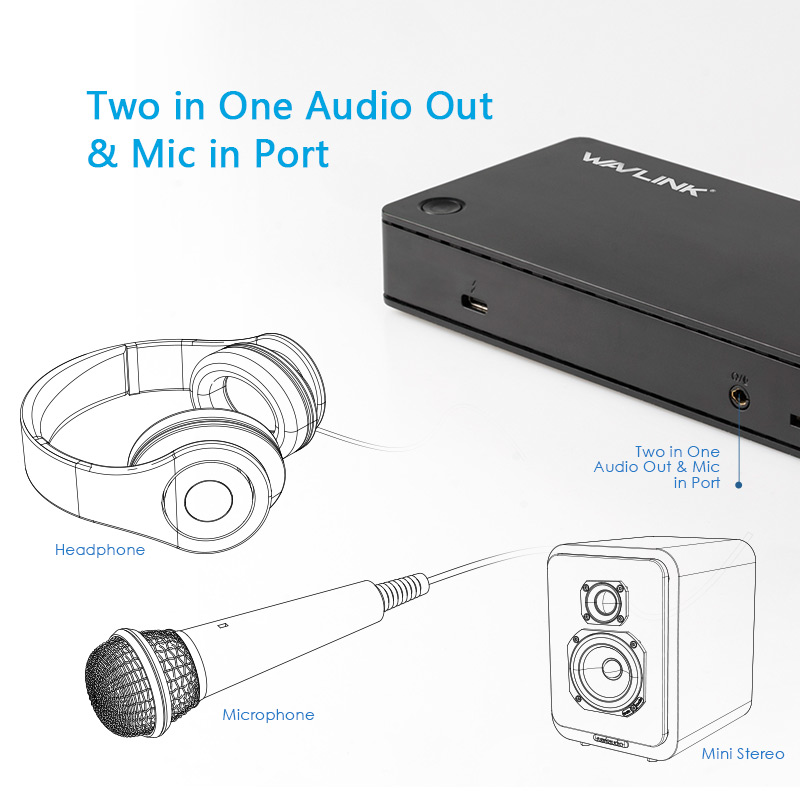

Two in One Audio Out & Mic in Port

For anyone who wants to access audio files, s/he can connect microphones, headphones or mini stereos to this “two in one” audio/mic port. Three different devices can be connected to this one port, improving the access experience qualitatively and efficiently.

Dual 4K High Resolution Display

UTD01 supports resolutions up to 4K display through DisplayPort, however, you can connect it to two monitors by using a USB-C to DisplayPort connector.

Kensington Lock Slot for Security

Insert a matched Kensington lock (not included) into the lock slot, then you can save your physical device and its important data from theft.

SD/Micro SD V3.0 Reading Simultaneously

This docking station with card reader slot supports 3.0 standard for SD and micro SD, data transfer speed up to 104MB/s.

  • TECHNICAL SPECIFICATIONS
  • Model

    UTD01/UTD01H

  • Ports

    4 x USB-A 3.0

    2 x Thunderbolt™ 3

    1 x DisplayPort(DP1.2)

    1 x SD Card Reader Slot

    1 x Micro SD Card Reader Slot

    1 x 4-Pole Audio Jack

    1 x RJ45 Gigabit Ethernet

    1 x DC Power Jack Port

  • Button

    1 x Tact Switch

  • LED

    Blue

  • Power Supply

    DC20V / 9A

  • Power Delivery

    85Watt upstream and 95Watt downstream

  • DIMENSIONS
  • Unit Dimensions

    210mm x 83mm x 32.5mm ( L x W x H )

  • Housing Material

    ABS

  • Shell Color

    Black

  • FUNCTIONS
  • Working Standards

    Thunderbolt™ 3 1st Port: 40Gbps Data and Upstream Charging

    Thunderbolt™ 3 2nd Port: 40Gbps Data, DisplayPort Alt. Mode 4K/60Hz

    DisplayPort: 4K/60Hz

    RJ45: Gigabit Ethernet

    4 x USB-A 3.0 Port: 5Gbps

    Card Reader: SD 3.0

    Phone Jack: Stereo 4pole TRRS Stereo

  • Operating System Support

    Microsoft Windows 10

    Apple Mac OS X

    Computer with Thunderbolt™ 3 port

  • PACKAGE
  • In The Box

    1 x Thunderbolt™ 3 Universal Docking Station

    1 x Thunderbolt™ 3 40Gbps cable 0.7 meter

    1 x DC20V/9A 180W Power Adapter

    1 x Quick Start Guide

    1 x DP to HDMI Adapter (Only included in UTD01H)
